ECLERIS LED HEADLUX,erie med supplies, erie medical supplies

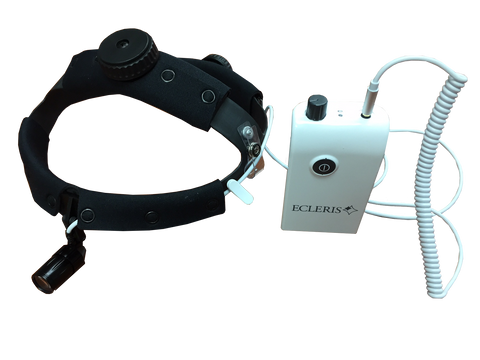

Item Number: HDL220/1 - Ultra-Lightweight LED Surgical Headlight System

Ultralight • High-Intensity • Ergonomic Comfort

Engineered for precision and long procedures, this LED surgical headlight provides powerful, uniform illumination in an ultra-lightweight design. Featuring an adjustable spot focus, dual-adjustment comfort helmet, and a long-lasting rechargeable lithium-ion battery, it provides maximum visibility with zero neck strain during clinical and surgical operations.

Key Features & Benefits

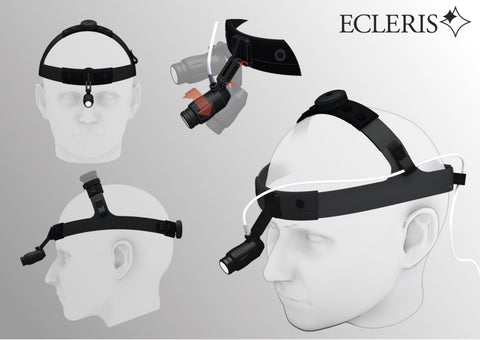

  • Ultra-Lightweight & Ergonomic Design

    The optic head reduces fatigue during extended procedures. The double-adjustment helmet ensures a secure, custom fit for all-day comfort.

  • Adjustable Spot & Variable Focus

    Seamlessly adjust the light spot diameter to match your procedure area, offering precise illumination at varying working distances.

  • Long Battery Life for Full-Day Use

    Powered by a high-capacity Lithium-ion polymer battery delivering 7+ hours of continuous runtime at maximum intensity with a fast recharge time.

  • High-Power LED Illumination

    Solid-state LED engine with a 20,000 hour lifespan provides bright, true-to-color illumination without frequent bulb replacements.

OPTICAL SPECIFICATIONS

Diameter of light spot at 340 mm distance Min. 19mm Max. 70mm

Diameter of light spot at 420 mm distance Min.21mm Max. 90mm

Illumination at 200 mm distance ≥ 35,000lx

Illumination at 340 mm distance ≥ 15,000lx

Illumination at 420 mm distance ≥ 9,000lx

ADJUSTABLE RANGE

Angle range Vertical ± 45º

Weight 0.05Lb // 23g

ELECTRICAL SPECIFICATIONS

Illumination source LED 20000 hours self-life

Rechargeable Battery 7.4V – Li-ion polymer batter

Battery Run-time≥ 7 hours

Charging time ≤ 3.5 hours

Adapter Input: 100-240 VAC, 50-60 Hz, 14VA

Output: 12-15 VDC 1,000-1,250 mA

Electrical safety Complying with EN60601-1 and EN60601-1-2

Protection: Class II

Internal electrical power source

ENVIRONMENT REQUIERMENTS

Operation Temperature: 50ºF – 104ºF// 10ºC – 40ºC

Humidity relative: 30% - 75%

Atmospheric pressure: 700 hPa – 1060 hPa

Shipping Common conveyance

Storage Temperature: -40ºF – 131ºF // -40ºC – 55ºC

Humidity relative: 10% - 90%

Atmospheric pressure: 500 hPa – 1060 hPa
